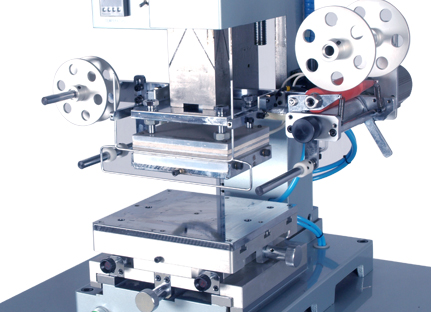

WFH-2000
Features
Floor standing design ,steady& durable structure
Main shaff has been grinded and can be operated under low pressure.
Widely application is small to medium size flat surface printing.
Technical Parameters

Mechanical model

WFH-2000

Stamping force

2000KG

Stamping Plate Size

220X140mm

Worktable

400X300mm

Worktable forth stroke



Stamping stroke

50mm

Center distance

220mm

Workpiece height

250mm

Foil length

0-300mm

Voltage

220V

Heating pipe power

250WX6

Dimension(L*W*H)

780X650X1580mm

Net weight

255KG

Application areas
Bottle cap, cosmetic container, key buckle , pen shaft and different trademark printing.

Human arm theory with stroke fixing funciton ,wide applicaiton and easy operation
