Pad Printing Machine Introduction


Pad Printing Machine is a kind of machine which adopts transfer printing method, which renders images and characters to be printed visible on the steel plate through the positive film and etches them on the plate.The etched steel plate is then placed into the inkwell.Machine will pick up the ink and blade away the ink which is not on the images. Afterwards, pad presses the steel plate, picks up the ink on the images and then transfers the images onto the workpieces.
Pad printing machines can be widely applied in the field of commodity, toys, stationery, electric components, electricappliances, plastics, leather, metal, glass, light industry, food packaging, and so on.


General Application


Machines of this series can be widely applied to print on various kinds of key-press electric components like computer, mobile phone, electric panel, telephone, game player, etc. Machine is also suitable to print on accessories of hardware or plastics like logo, toy, and commodity. Special design is available according to customers' specific requirements.

Rich experience in pad printer production has been built since the start of our business, and a specific series of pad printers has come out to satisfy all customers' printing requirements. We can also offer the customized solutions for customers' special printing needs with the best cost performance.

Pad Printing Machine stroke

Stroke/Model
125

Single-color(Fixed worktable)

WN-121

Double-color(Shuttle worktable)

WN-121S

160

Single-color(Fixed worktable)

WN-122,WN-160A,WN-160AE

Double-color(Shuttle/Turntable worktable)

WN-123,WN-160AL,WN-160AEL,WN-129

Three-color(Shuttle/Turntable worktable)

WN-136,WN-130

Four0color(Shuttle/Turntable worktable)

WN-118,WN-117

200

Single-color(Fixed worktable)

WN-126

Double-color(Shuttle/Turntable worktable)

WN-131

Four-color(Shuttle/Turmtable worktable)

WN128,WN-127

Six-color(Shuttle/Turntable worktable)

WN-132L,WN-132

250

Single-color(Fixed worktable)

WN-161

Double-color(Shuttle/Turntable worktable)

WN-162

Five-color(Shuttle/Turntable worktable)

WN-165L,WN-165

Six-color(Shuttle/Turntable worktable)

WN-166

Eight-color(Fixed worktable)

WN-168

300

Sigle-color(Fixed worktable)

WN-135

Double-color(Shuttle/Turntable worktable)

WN-139

Four-color(Shuttle/Turntable worktable)

WN-138,WN-137

Six-color(Shuttle/Turntable worktable)

WN-133

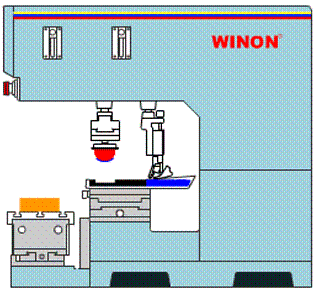

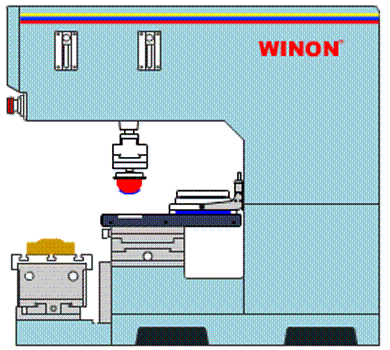

Ink Well Type Printing Flow Chart

Inkwell pad printer machine


Ink mode:

Adopts imported ceramic ring, sealed ink cup can maximally reduce ink waste and the evaporation of the smell. Ink can bestored in the cup for a long duration with stable viscosity. It's famous for being economic and environment-friendly.

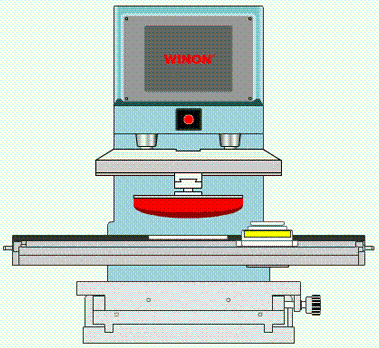

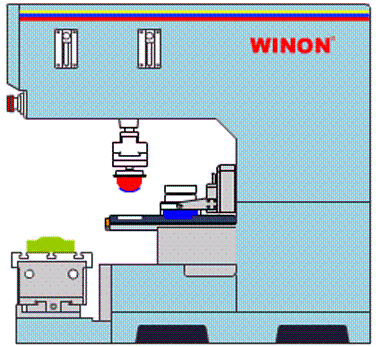

Ink Cup Type Printing Flow Chart

Ink mode:

Adopts imported ceramic ring, sealed ink cup can maximally reduce ink waste and the evaporation of the smell. Ink can bestored in the cup for a long duration with stable viscosity. It's famous for being economic and environment-friendly.

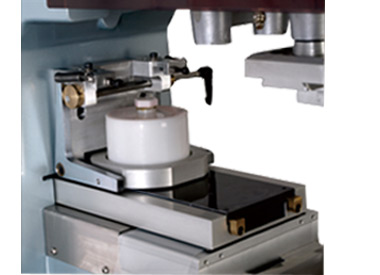

Inkcup side-way pad printer machine

Inkcup pad printer machine

Cliché front/back pad printer machine

Winon pad printer worktable system is divided into:

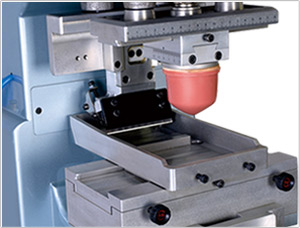

1.Shuttle Worktable

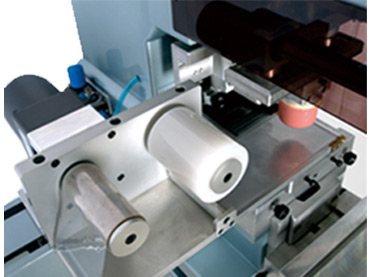

2.Turntable Worktable

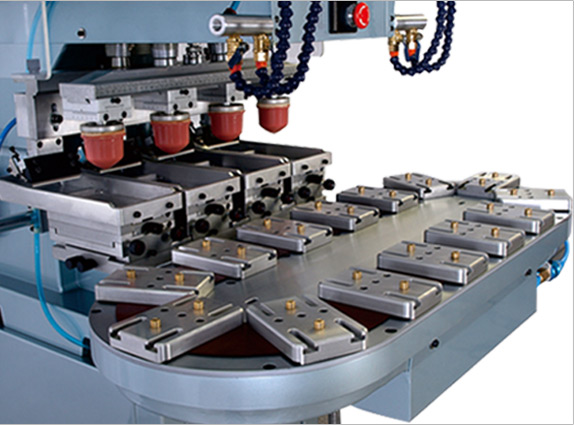

Multi-color conveyor worktable with conveyor belt:

Housed by cast aluminum alloy, it's solid and durable; precise slide rail and creative design guarantee two-color registration precision; 12-station worktable is powered by advanced components. The special conveying system and shock absorber guarantees machine's high speed and stableness.

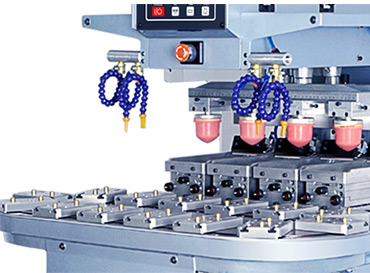

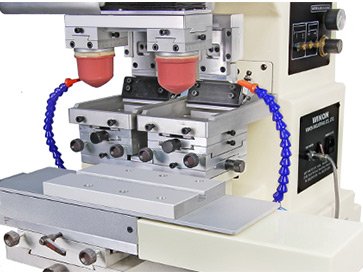

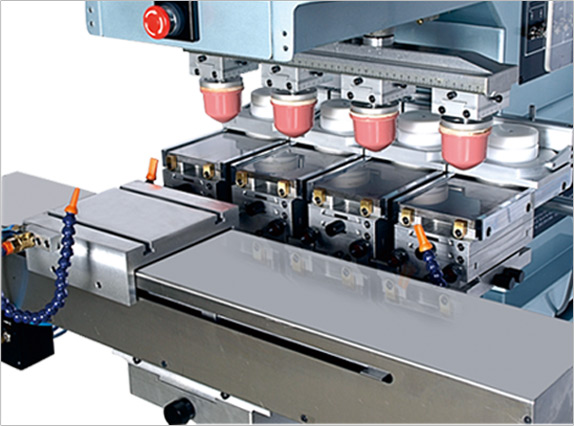

Multi-color shuttle worktable:

Housed by excellent alloy, driven by precise components, the shuttle worktable is suitable for multi-color(3-5) registration with its stable and precise performance.

Commonly used variant types

C Cleaning pad
F lnkcup side-way

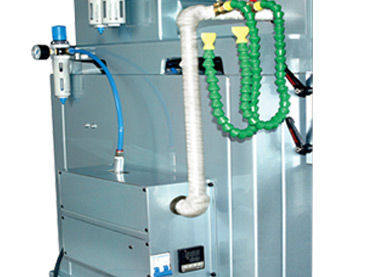

G Hot air system
L Shuttle Worktable
N Pad Independent movement
P Pad side-way
/R# Rotary worktable
T Cliche front/back movement
X Increase the printing workpiece

C Pad cleaning device(e.g.WN-122AC) F Inkcup side-way structure(e.g.WN-122FE) G Hot air blowing system(e.g.WN-123AG)
L Shuttle Worktable (e.g.WN-160AEL) N Pad Independent Movement(e.g.WN-162ENC) P Pad side-way structure(e.g.WN-123P)
/R# Rotary worktable(e.g.WN-117) T Cliché front/back movement(e.g.WN-122TE) X Increase the printing workpiece(e.g.WN-122XE)
