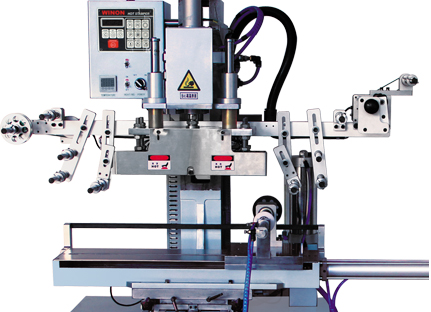

WFH-300/400X
Features
Floor standing design ,steady& durable structure
Main shaff has been grinded and can be operated under low pressure.
Widely application is small to medium size flat surface printing.
Technical Parameters

Mechanical model

WFH-300/400X

Stamping force

300KG

Stamping Plate Size

100X400mm

Worktable



Worktable Forth Stroke

450mm

Stamping stroke

75mm

Center distance



Workpiece height

100mm

Foil length

0-300mm

Voltage

380V

Heating pipe power

5500W

Dimension(L*W*H)

1320X600X1580mm

Net weight

380KG

Application areas
Bottle cap, cosmetic container, key buckle , pen shaft and different trademark printing.

Human arm theory with stroke fixing function .wide applicaiton and easy operation.
