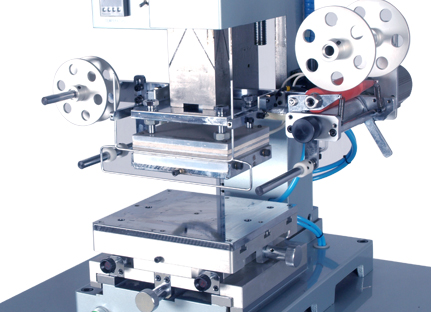

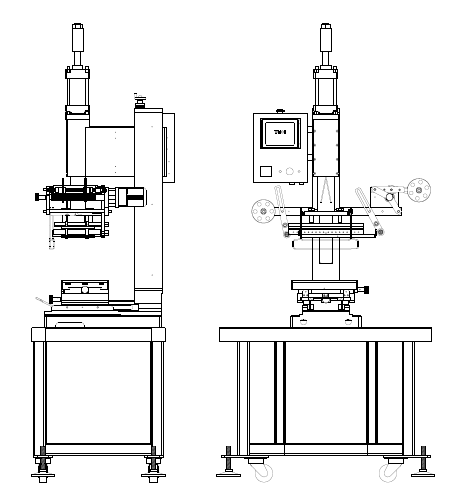

WFH-300
Features
Floor standing design ,steady& durable structure
Main shaff has been grinded and can be operated under low pressure.
Widely application is small to medium size flat surface printing.
Technical Parameters

Mechanical Model

WFH-300

Stamping Force

300KG

Stamping Plate Size

220X140mm

Worktable

280X200mm

Worktable Forth Stroke

130mm

Stamping Stroke

75mm

Central Distance

240mm

Workpiece Height

250mm

Foil Length

0-300mm

Voltage

220V

Heating pipe Power:

250WX6W

Dimension(L*W*H)

920X600X1850mm

Net Weight

230KG

Application areas
Bottle cap, cosmetic container, key buckle , pen shaft and different trademark printing.

Human arm theory with stroke fixing function .wide applicaiton and easy operation
