WN-160AL/2

Features

The characteristics of two-color inkwell pad printer.
Machine of this series adopts two-color inkwell.
Microelectronic keyboard operation controller (PIC control).
Independent pad up/down stroke and speed adjustable,chiche position adjustable ,shuttle table or rotary worktable,famous for their characteristics like two-color registration.precision,high printing efficiency and easy operation, they can be widely applied to print electronic products,home appliances,hardware ,plastics,toys and stationery,satisfying various high-quality printing requirements.

Technical Parameters

Mechanical model

WN-160AL/2

Single cycle:

YES

Workpiece height

240mm

Printing speed

1200Pcs/h

Steel plate size:

100mmx100mm

Printing area:

60mmX60mm

control panel:

TOUCHscreen

power supply:

110V or 220V 50/60Hz

Electric power:

20W

External dimensions:

770mmX650mmX1400mm

Application areas

This series of pad printing models are suitable for all kinds of electronic products, such as computer keyboards, mobile phone keyboards, electronic panels, telephones, game consoles, watches and clocks, toys, daily necessities, gifts and other hardware and plastic products LOGO, pattern text printing, also Special models can be designed for specific product needs.

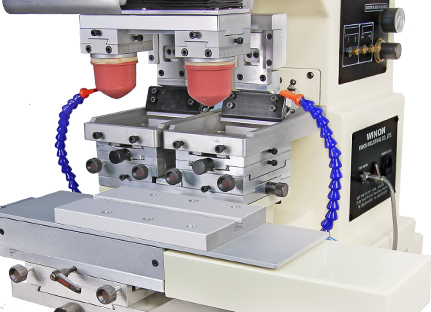

Two-color shuttle worktable:
Housed by excellent alloy,driven by precise components,the shuttle worktable is suitable for two –color registration with its stable and precise performance .
