WN-131

4dhcpmingchen

Location Home -> Products -> Pad Printer -> Two Color Inkwell -> WN-131

Features

The characteristics of two-color inkwell pad printer.
Machine of this series adopts two-color inkwell.Microelectronic keyboard operation controller (PIC control).Independent pad up/down stroke and speed adjustable,chiche position adjustable ,shuttle table or rotary worktable,famous for their characteristics like two-color registration.precision,high printing efficiency and easy operation, they can be widely applied to print electronic products,home appliances,hardware ,plastics,toys and stationery,satisfying various high-quality printing requirements.

Technical Parameters

Mechanical model	WN-131
Single cycle:	YES
Max.print(h)	200mm
Cycle/hour	1000Pcs/H
Cliche size	150mmx150mm
Printing area	110mmX110mm
Control panel	TOUCHscreen
Power supply	110V or 220V 50/60Hz
Electric power	20W 6Bar
External dimensions	890mmX630mmX1450mm

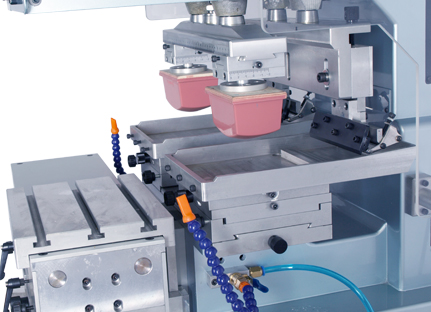

Two-color shuttle worktable:
Housed by excellent alloy,driven by precise components,the shuttle worktable is suitable for two –color registration with its stable and precise performance .

Application areas

Machines of this series can be widely applied to print on various kinds of key-press electric components like computer.mobile phone,electric panel.telephone,game player,etc.machine is also suitable to print on accessories of hardware or plastics like logo,toy,and commodity.Special design is available according to customer's specific requirements.
