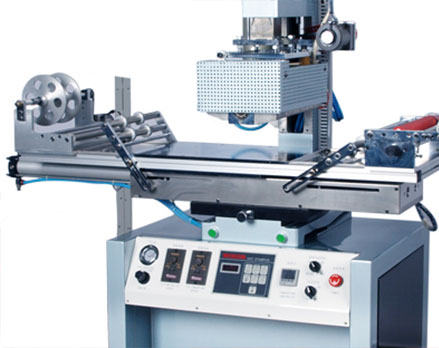

Heat transfer Machine Features

Housed by excellent steel.machine is handy and durable,with cast steel and precise lapping,worktable is flat and solid.microcomputer system control with various delay and force value setting.machine is easy to operate with high precision and efficiency,controlled by special motor,foil-wrapping device is easy to mantle and can well integrate with silicon roller in various hardness and sizes to get perfect transferring image

Technical Parameters

Model	WFH-300AS/4
Stamping force	300KG
Silicone Roller SPEC	∅100X30-300mm
Worktable	400X300mm
Worktable stroke	380mm

Stamping stroke	70mm
Center distance	240mm
Workpiece height	200mm
Voltage	220V
Heating pipe power	500WX6
Dimension(LWH)	1350X600X1950mm
Net weight	260KG

Application areas
Caps, cosmetic boxes, key chain, pen and all kinds of trademark printing flat pressure hydraulic automatic hot stamping machine.

The principle of human joints can be scheduled travel, widely used, easy to operate. With the world famous brand pneumatic components driven, advanced PLC (programmable logic controller) intelligent full servo motor drive silk screen machine, smooth operation, easy to adjust, with safety protection device, printing speed and stroke can be fully digital control, easy to operate and so on The
