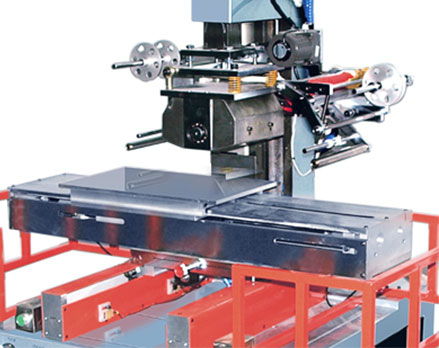

Features
Fuselage made of high quality steel, light and wear-resistant, cast steel flat table.
With precision grinding, flatness is good, durable, the use of microcomputer control system, pressure delay can be, precision and accurate control, special motor roll foil, easy loading and unloading.Can be used with different hardness and size of silicon tube, transfer pattern effect is good.
Technical parameters
|
Model
|
WFH-40AS38P280
|
|
Stamping Force
|
300KG
|
|
Silicone Roller SPEC
|
∅100X30-150mm
|
|
Worktable
|
480X280mm
|
|
Worktable stroke
|
380mm
|
|
Worktable forth stroke
|
280mm
|
|
Stamping stroke
|
70mm
|
|
Center distance
|
240mm
|
|
Workpiece height
|
150mm
|
|
Voltage
|
220V
|
|
Electric power
|
250WX6
|
|

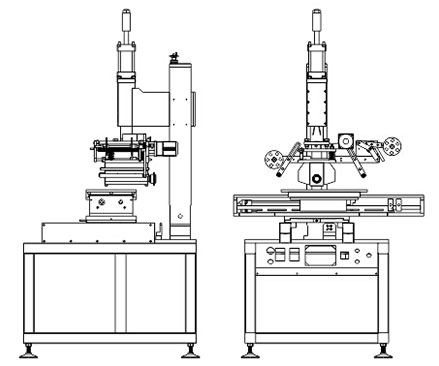

Dimensions
|
1480X680X1950mm
|
|
Net weight
|
175KG
|
Application areas
It can be used in different materials (such as plastic, leather, paper, paper, paper, paper, paper, paper, Plastic paper, wood, such as bottle cap. Bottle, pen, product panel, and arc products and all kinds of trademark printing
The principle of human joints can be scheduled travel, widely used, easy to operate. With the world famous brand pneumatic components driven, advanced PLC (programmable logic controller) intelligent full servo motor drive silk screen machine, smooth operation, easy to adjust, with safety protection device, printing speed and stroke can be fully digital control, easy to operate and so on The
