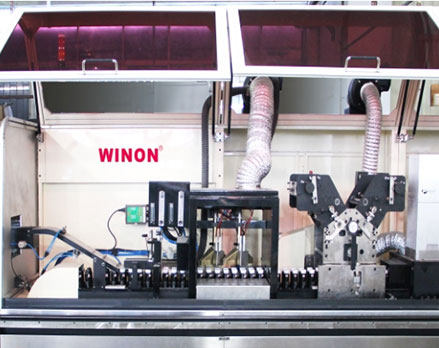

WG-7832/4 /3UV
Features

Equipped with large stocker in machine front part, feed the materials into the unscrambler with the elevator ,then send to the auto feeding channel after auto selection,the auto feeding device consists of convey pipeline made of aluminium alloy and stainless steel ,feed with wind power and PLC control. Equipped with surface treatment device and can operate independently according to the material of the cap. Used to change the stickness and adhesion.thus can easily get an attachment of ink onto the print surface.

Adopt the well-designed magnetic plate printing head, two sets of heads, two colors for each set ,which can carry out register color method and also inktrapping printing method,as well as the up/down,left/right micro adjustment device ,each set head can be adjusted individually,specially designed inkwell,easy to mount,dismantle and clean,can reduce the ink loss and improve the production efficiency .

Using the famous fusion Uv lamp,the automatic lamp control and air suction system can avoid the lamp over heated and maximize the lamp performance.

With advanced anilox roller for gloss oil,give the printed surface higher lustrousness.

Fully automatic discharging ,automatic counting ,automatic packing and switch encasement,manual encasement and counting is not needed ,resource is saved.


  Technical parameters

Printed size (diameter x length)

(Ø28mm-ø38mm) x (19mm-22mm)

Maximum printing area:

Ø34mm

Maximum operating speed:

90.000pcs /hr

Uv lamp power:

1.8kweach

Power requirements:

380V 3phase 50Hz (47) A, 220V 62 A

Pneumatic requirements:

5-7bar

Total power:

18kw

Mechanical volume (length X width x height):

6400mmx1500mmx1700mm

Weight:

6400Kg

Number of printable colors:

1-4Color + Lacquer

Uv system quantity:

3

Production line area (length X width x height):

15000mmx3200mmx2600mm

Application areas

Generation introduction :

This machine is a fully-automatic printing production line for round plastic bottle cap.it is widely used for printing on mineral water bottle cap and drinks bottle cap.

Machine design is based on the principle of dry after each print ,equipped with unique magnetic rollers,print from single color to four colors with gloss oil ,can adopt register color method and also inktrapping method ,its very convenient to replace the workpiece ,with the rubber mat rolling print design ,can overcome the difficulties caused by cap height difference.

Machine is controlled by PLC. Touch screen operation and easy to operate.

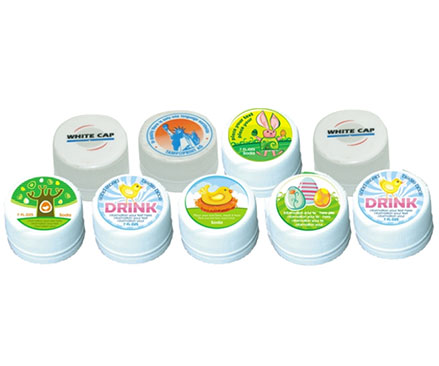

Printing sample
