Features

The characteristics of two-color inkwell pad printer.
Machine of this series adopts two-color inkwell.
Microelectronic keyboard operation controller (PIC control).
Independent pad up/down stroke and speed adjustable,chiche position adjustable ,shuttle table or rotary worktable,famous for their characteristics like two-color registration.precision,high printing efficiency and easy operation, they can be widely applied to print electronic products,home appliances,hardware ,plastics,toys and stationery,satisfying various high-quality printing requirements.
Technical Parameters

Mechanical model	WN-139
Single cycle	YES
Max.print(h)	200mm
Cycle/hour	700Pcs/H
Cliche size	250mmx250mm
Printing area	200mmX200mm
Control panel	TOUCHscreen
Power supply	110V or 220V 50/60Hz
Electric power	20W 6Bar
External dimensions	1170mmX800mmX1690mm

Application areas

Machines of this series can be widely applied to print on various kinds of key –press electric components like computer, mobile phone. electric panel. telephone, game player, etc, Machine is also suitable to print on accessories of hardware or plastics like logo ,toy, and commodity. Special design is available according to customer’s specific requirements.

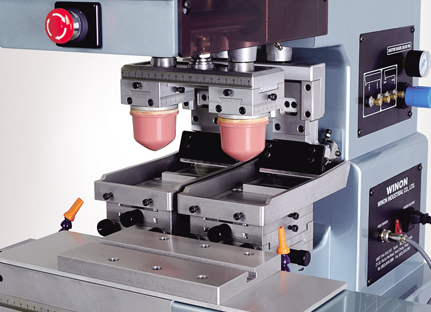

Two-color shuttle worktable:
Housed by excellent alloy,driven by precise components,the shuttle worktable is suitable for two –color registration with its stable and precise performance .
