Features
The characteristics of two-color inkwell pad printer.
Machine of this series adopts two-color inkwell.
Microelectronic keyboard operation controller (PIC control).
Independent pad up/down stroke and speed adjustable,chiche position adjustable ,shuttle table or rotary worktable,famous for their characteristics like two-color registration.precision,high printing efficiency and easy operation, they can be widely applied to print electronic products,home appliances,hardware ,plastics,toys and stationery,satisfying various high-quality printing requirements.
Technical Parameters

Mechanical model	WN-131P
Single cycle	YES
Max.print(h)	250mm
Cycle/hour	900Pcs/H
Cliche size	150mmx150mm
Printing area	110mmX110mm
Control panel	TOUCHscreen
Power supply	110V or 220V 50/60Hz
Electric power	20W 6Bar
External dimensions	900mmX1060mmX1450mm

Application areas
Machines of this series can be widely applied to print on various kinds of key –press electric components like computer, mobile phone. electric panel. telephone, game player, etc, Machine is also suitable to print on accessories of hardware or plastics like logo ,toy, and commodity. Special design is available according to customer’s specific requirements.

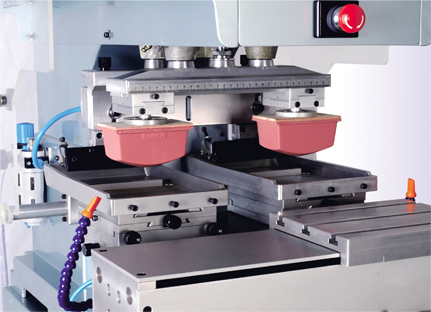

Two-color pad side-way structure：
Housed by excellent alloy, driven by precise components, the pad side-way structure for derivate machine type. Which is suitable for two-color registration with its stable and precise performance.
