WN-123E
Features
The characteristics of two-color inkcup pad printer.
Machine of this series adopts ink-saving ink cup.
Microelectronic keyboard operation controller (PIC control).
Independent pad up/down stroke and speed adjustable,chiche position adjustable ,shuttle table or rotary worktable,famous for their characteristics like two-color registration.precision,high printing efficiency and easy operation, they can be widely applied to print electronic products,home appliances,hardware ,plastics,toys and stationery,satisfying various high-quality printing requirements.
Technical Parameters

Mechanical model

WN-123E

Single cycle:

YES

Oil Cup:

Φ86 MM

Workpiece height

70mm

Printing speed

1200Pcs/h

Steel plate size:

100mmx200mm

Printing area:

Φ75mm

control panel:

TOUCHscreen

power supply:

110V or 220V 50/60Hz

Electric power:

20W 6Bar

External dimensions:

700mmX580mmX700mm

Application areas
Machines of this series can be widely applied to print on various kinds of key –press electric components like computer, mobile phone. electric panel. telephone, game player, etc, Machine is also suitable to print on accessories of hardware or plastics like logo ,toy, and commodity. Special design is available according to customer’s specific requirements.

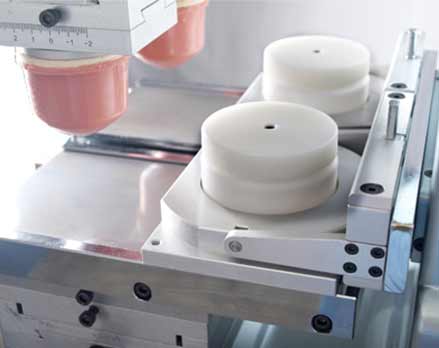

Two-color shuttle worktable:
Housed by excellent alloy,driven by precise components,the shuttle worktable is suitable for two –color registration with its stable and precise performance.
