Features
The characteristics of two-color inkcup pad printer.
Machine of this series adopts ink-saving ink cup.
Microelectronic keyboard operation controller (PIC control).
Independent pad up/down stroke and speed adjustable,chiche position
adjustable ,shuttle table or rotary worktable,famous for their
characteristics like two-color registration.precision,high printing
efficiency and easy operation, they can be widely applied to print
electronic products,home appliances,hardware ,plastics,toys and
stationery,satisfying various high-quality printing requirements.
Technical Parameters
|
Mechanical model
|
WN-123AEG
|
|
Pad Cleaning Device
|
NO
|
|
Single cycle
|
YES
|
|
InkCup
|
ø86 MM
|
|
Max.print(h)
|
240mm
|
|
Printing Precistion
|
±0.02 MM
|
|
Cliche size
|
100mmx200mm
|
|
Printing area
|
ø75MM
|
|
Printing force:
|
100KG
|
|
Control panel:
|
IC
|
|
power supply:
|
110V or 220V 50/60Hz
|
|
Electric power:
|
20W 6Bar
|
|
External dimensions:
|
770mmX650mmX1400mm
|
Application areas
Machines of this series can be widely applied to print on various kinds of key –press electric components like computer, mobile phone. electric panel. telephone, game player, etc, Machine is also suitable to print on accessories of hardware or plastics like logo ,toy, and commodity. Special design is available according to customer’s specific requirements.

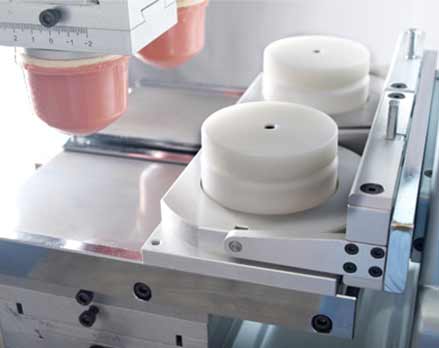

Two-color shuttle worktable:
Housed by excellent alloy,driven by precise components,the shuttle worktable is suitable for two –color registration with its stable and precise performance.
