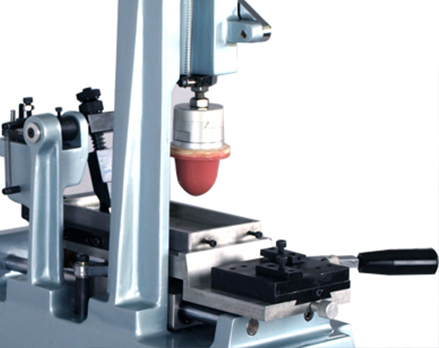

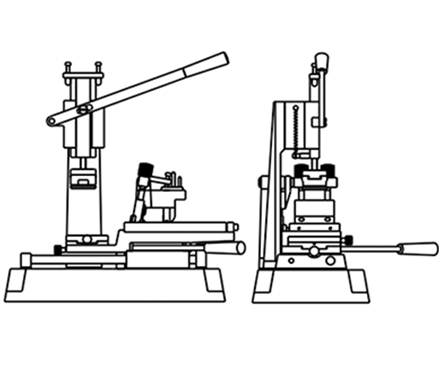

WN-120E


Features

The characteristics of single-color ink cup printer.

Machine of this series adopts single –color ink-saving inkcup, using oil supply system

Microelectronic keyboard operation controller(PIC control)

Independent pad up/down stroke and speed adjustable.

Worktable is adjustable in X.Y.Z and angle directions.

with a wide range of applications. high printing efficiency ,easy operation .they can be widely applied to print on electronic products ,home appliances ,hardware, plastics, toys and stationery, etc, satisfying various printing requirement (flat, curve, irregular surface printing)


Technical Parameters

Model

WN-120E

Single cycle

YES

Ink Cup(mm)

Φ60

Max.print(h)

40mm

Printing speed

Manual

Cliche size

75mmx100mmm

Printing area(mm):

Φ50MM

Control panel:

TOUCHscreen

Power supply:

110V or 220V 50/60Hz

Electric power:

20W 6Bar

External dimensions:

460mmX380mmX540mm


Manual cup printing machine: oil cup type oil supply system, which is characterized by economic and environmental protection. Manual printing machine easy to use, easy to adjust, to minimize the waste of ink and odor evaporation. The ink can be placed in the oil cup for a long time, the concentration is still stable.
