overview

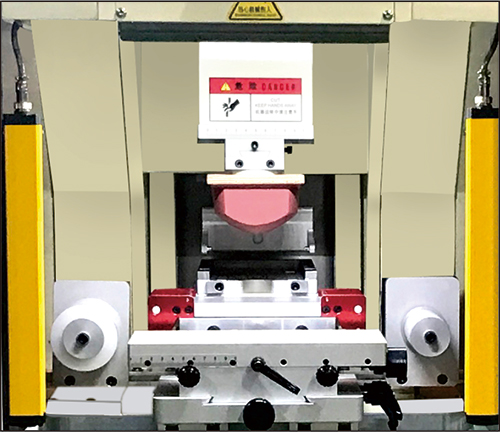

This single-color pad printing machine is a fully servo printing machine carefully designed by our company. It adopts an ink-saving inkcup, PLC control operation interface, convenient parameter adjustment, precise printing, and can meet the requirements of high-quality graphic and text printing.

Basic parameters

Model:	WNS-250EC
Printing color:	1
Max.steel plate size:	100mmX200mm
Inkcup size:	Φ90mm
Max.printing area:	Φ70mm
Print head front/back stroke :	250mm
Print head up/down stroke:	110mm
Inkcup front/back stroke:	100mm
Equipment speed:	1200次/小时
Accuracy:	±0.02mm
Power supply:	220V 50Hz

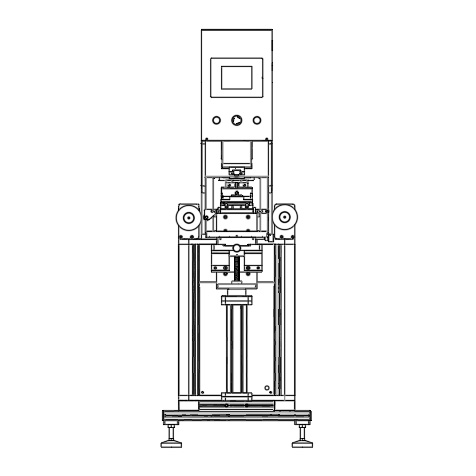

Dimensions:	600mmX860mmX1700mm
Note: The equipment speed is not the actual pad printing capacity.

Main Technical Configuration Description

1). Control system: PLC programmable controller
2). Operating System: Touchscreen operating system with a user-friendly interface.
3). Print head part: Servo motor drive, high-precision ball screw with high-precision linear slide structure, high precision and durability, smooth movement.
4). Inkcup part: Servo motor drive, high-precision ball screw with high-precision linear slide structure, high precision and durability, smooth movement.
5).Lifting worktable: The height of the lifting workbench can be adjusted as needed, and the workbench is equipped with angle adjustment and X, Y direction adjustment.
6). Pad cleaning system: The cleaning frequency and frequency can be set according to production needs.

Characteristics of this pad printing machine

1). The machine runs smoothly, with accurate positioning and stable performance.

2). The printing speed can be adjusted to meet different printing requirements.

3). Touch screen panel, easy to operate.

Main documents

1). Provide equipment usage and maintenance manuals.

2). Provide wiring diagrams, spare parts lists, and maintenance methods for alarms and warnings.

Facilities to be provided by the customer

1). There is a 220V AC power supply with a switch located less than 2 meters around the equipment installation location.

6. List of main purchased parts

No.	Material name	spec	quantity	Supplier / origin	Remarks
1	PLC			Inovance
2	Touch Screen			Artrich
3	Servo amplifier			Inovance
4	Servo motor			Inovance
5	Cylinder			YHDA
6	Solenoid valve			YHDA
7	Linear  guide			YHDA
8	Linear slider			YHDA
9	Ball screw			NSK
10	Ball screw nut			APT
11	Button switch			Meanwell
12	Leakage switch			Chint
