Features

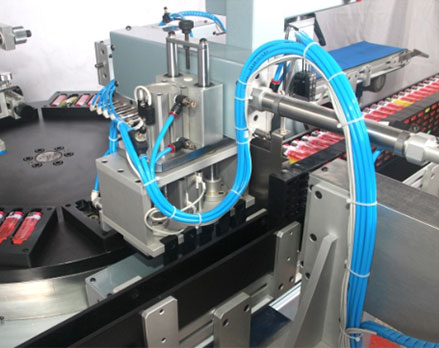

·This machines is a manipulator for auto-feeding/ discharge and indexer rotary table screen printing machine combination.
·Pneumatic components are well know brand.
·Lifting parts is driving by cylinder and height is adjustable, positioning stable.
·Blade is driving by sodless cylinder and stroke & speed is adjustable.
·Angle of doctor blade and covering ink blade can be separated settled.
·Working table uses precision indexer rotary table designs to make sure printing quality.
·Doctor and screen plate is easy to clean and assemble with Heads-up function.
·Machine is easy to adjust stroke with PLC control and touch-screen system.
Technical Parameters
|
Model :
|
WSC-060BR/8F
|
|
Frame size :
|
200X350mm
|
|
Max.printing area
:
|
60X160mm
|
|
Rotary table size
:
|
ø720MM
|
|
Max .printing speed
:
|
1300 Cycle /H （6500PCS/H）
|
|
Power supply
:
|
220V 50Hz
|
|
Air supply
:
|
5-7bar
|
|
Rated power:
|
1.25KW
|
|
Machine dimensions（mm）
:
|
2450*1540*1600
|
Application areas

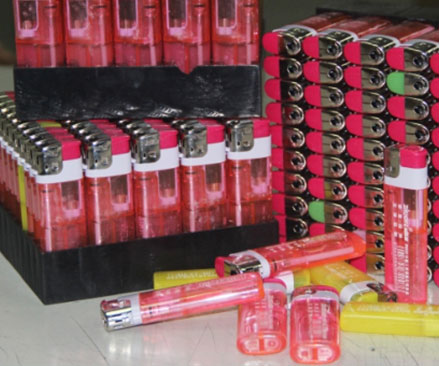

Suitable for all kinds of lighter pattern printing
Printing system
