WN-131EN

4dhcpmingchen

Location Home -> Products -> Pad Printer -> Two Color Inkcup -> WN-131EN

Features
The characteristics of two-color inkcup pad printer.
Machine of this series adopts ink-saving ink cup.
Microelectronic keyboard operation controller (PIC control).
Independent pad up/down stroke and speed adjustable,chiche position adjustable ,shuttle table or rotary worktable,famous for their characteristics like two-color registration.precision,high printing efficiency and easy operation, they can be widely applied to print electronic products,home appliances,hardware ,plastics,toys and stationery,satisfying various high-quality printing requirements.
Technical Parameters

Mechanical model	WN-131EN
Single cycle	YES
InkCup	Φ135 MM
Max.print(h)	200mm
Cycle/hour	1000Pcsh
Cliche size	150mmx300mm
Printing area	Φ120mm
Control panel	TOUCHscreen
Power supply	110V or 220V 50/60Hz
Electric power	20W 6Bar
External dimensions	920mmX630mmX1450mm

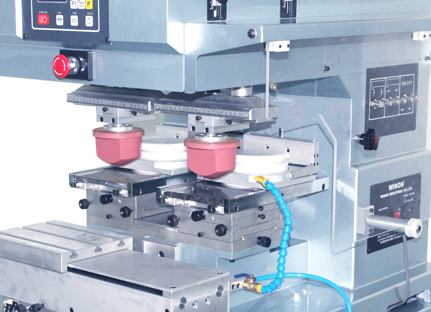

Two-color shuttle worktable:
Housed by excellent alloy,driven by precise components,the shuttle worktable is suitable for two –color registration with its stable and precise performance.

Application areas

Machines of this series can be widely applied to print on various kinds of key-press electric components like computer,mobile phone,electric panel,telephone,game player,etc.Machine is also suitable to print on accessories of hardware or plastics like logo,toy,and commodity.Special design is availbale according to customer's specific requirements
