Features
The characteristics of two-color inkcup pad printer.
Machine of this series adopts ink-saving ink cup.
Microelectronic keyboard operation controller (PIC control).
Independent pad up/down stroke and speed adjustable,chiche position
adjustable ,shuttle table or rotary worktable,famous for their
characteristics like two-color registration.precision,high printing
efficiency and easy operation, they can be widely applied to print
electronic products,home appliances,hardware ,plastics,toys and
stationery,satisfying various high-quality printing requirements.
Technical Parameters
|
Mechanical model
|
WN-129E
|
|
Single cycle
|
YES
|
|
InkCup
|
Φ86 MM
|
|
Max.printing (h)
|
180mm
|
|
Cycle/hour
|
1500Pcs/h
|
|
Cliche size
|
100mmx200mm
|
|
Printing area
|
Φ75mm
|
|
Control panel
|
TOUCHscreen
|
|
Power
|
110V or 220V 50/60Hz
|
|
Electric power
|
20W 6Bar
|
|

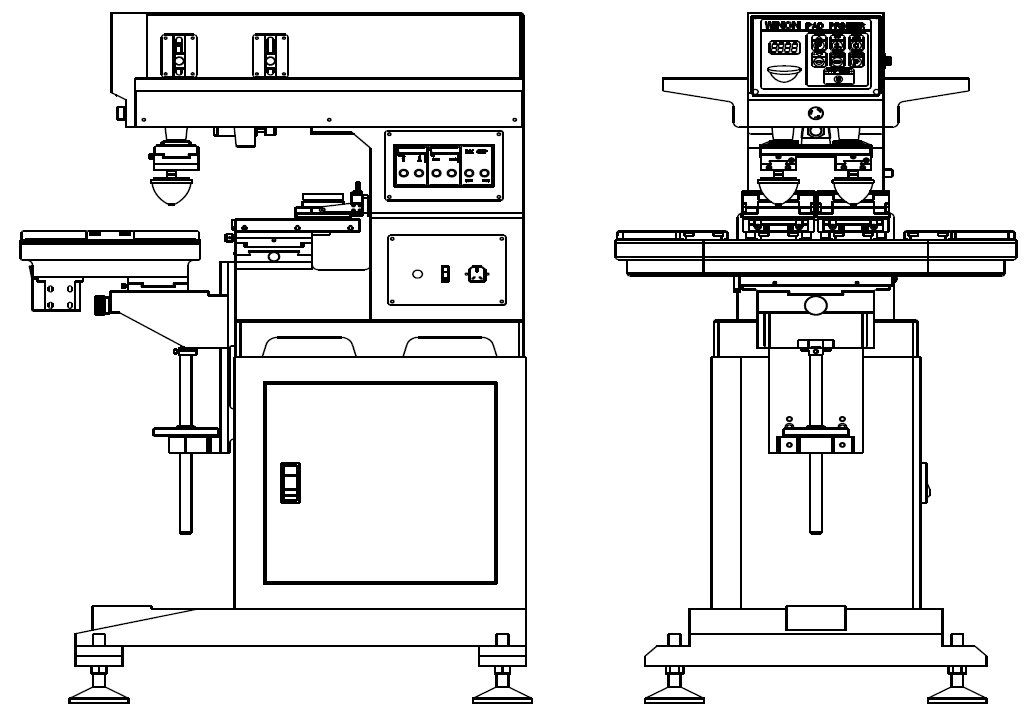

External dimensions
|
860mmX710mmX1400mm
|
Application areas
This series of printing machine models for all kinds of electronic products such as computer keyboard, mobile phone keyboard, electronic panels, telephones, game consoles and watches and clocks, toys, daily necessities, gifts and other metal plastic products LOGO ﹑ pattern text printing, also Can be designed for special product demand for special models.

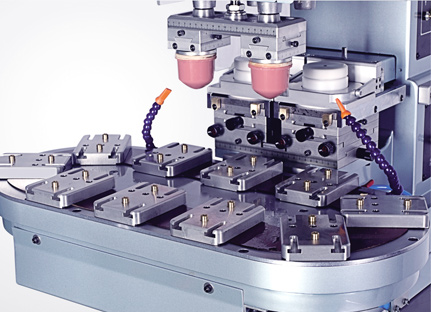

Two-color rotary worktable:
Housed by cast aluminum alloy,it’s solid and durable;precise slide railand .creative design guarantee two-color registration precision ;10-station worktable is powered by advanced components,The special conveying system and shock absorber guarantee machine’s high speed and stableness.
