Features
Features of WN-137/8S/1 egg package printing machine.
1.The machine of WN-137/8S/1 is for 8 –color pad printing for egg package .
2.Adopts PLC control system , touch screen interface,
3.Automatic functional type machine ,adopt rotary worktable with conveyor belt. Pad up & down drive by servo with 28 station ,3-side rotary way printing,
4.High speed and smooth machine operation.
5.Equipped with emergency stop button ,easy operation and safety.
technical parameters

Mechanical model	WN-137/8S/1
Printing color	Eight colors
Maximum steel plate size	150X250MM
Maximum printing area:	100X200MM
Maximum printing height	200MM
Printing speed	700-800PCS/hr
Air supply specifications	6bar
Power Specifications:	380V 50-60Hz
Dimensions:	3510X1821X1667MM

Application areas

Suitable for mass production requiring high-precision registration.

Machines of this series can be widely applied to print on various kinds of key –press electric components like computer, mobile phone. electric panel. telephone, game player, etc, Machine is also suitable to print on accessories of hardware or plastics like logo ,toy, and commodity. Special design is available according to customer’s specific requirements

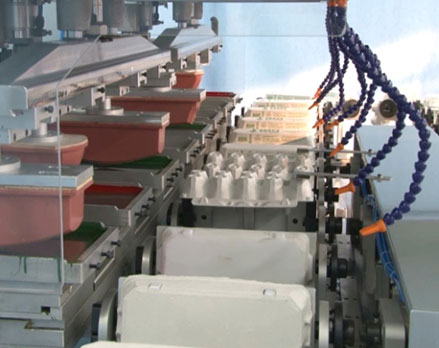

Printing station

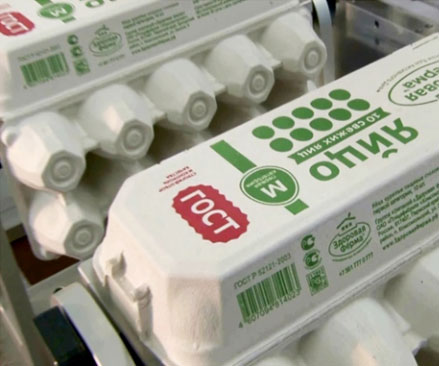

Printing sample
