Features

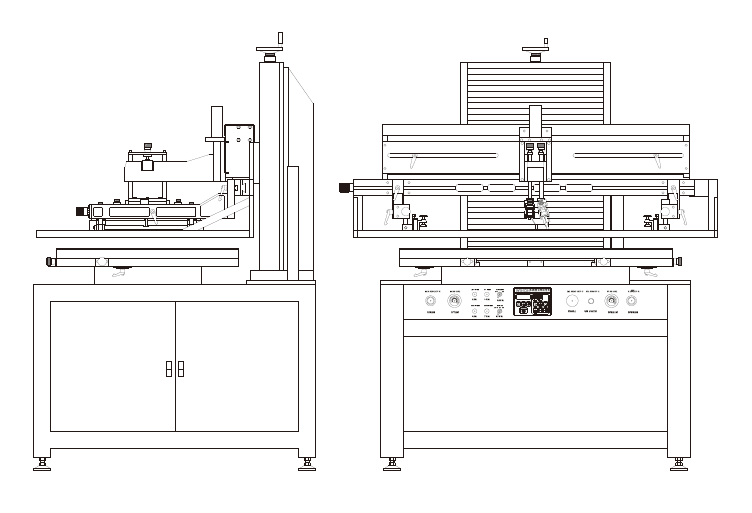

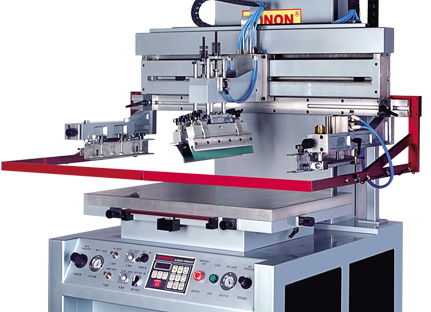

The characteristics of flat screen printer.
Screen plate up/down, light and compact.
Microcomputer control, multi-function, easy operation.
World-famous pneumatic components power, durable and solid
Worktable and screen arm micro adjustable, easy commissioning ,gear and rack convey cooperatively with a suitable fixture, precise printing positioning ,special shock absorber ,stable performance, mesh clean and replace is convenient with printing head up device (some types) avoid mesh sticking after printing with screen plate up device (some type)It can be widely applied in the industry of textile printing ,electronics, arts, decoration, publishing, and so on.
Technical Parameters
|
Mechanical model
|
WSC-700BE
|
|
Max.screen plate size
|
750X1000mm
|
|
Max.printing area
|
500X700mm
|
|
Printing thickness
|
100mm
|
|
Printing speed
|
600 cycle/hour
|
|
Worktable size
|
600X800mm
|
|
Power SPEC
|
110V or 220V 50/60HZ
|
|
Power consumption
|
1700W
|
|
Dimensions
|
1350X1050X1880mm
|
|
net weight
|
470KG
|
Typical Application areas
Cars: motormeter, tank, window glass.
Electronic products: keypad, silicon keys, phone window, membrane key, circuit board.
Electronic appliances: nameplate, dial scale, fireplace glass, appliance housing ,glass.
Ads: postal, dossal ,label, road marker, meal card, credit card.
Customs: T-shirt, flag, knit goods.
Gift: Toys, stationery, handicraft, transfer paper.
For a large area of silk screen printing, intelligent full-servo motor-driven screen printing machine, smooth operation, easy adjustment, security devices, printing speed and travel can be fully digital control.
Application areas
Machines of this series can be widely applied to print on various kinds of key –press electric components like computer, mobile phone. electric panel. telephone, game player, etc, Machine is also suitable to print on accessories of hardware or plastics like logo ,toy, and commodity. Special design is available according to customer’s specific requirements.
