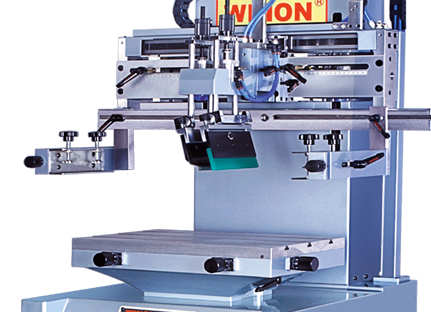

WSC-500B
Features
The characteristics of flat screen printer.
Screen plate up/down, light and compact.
Microcomputer control, multi-function, easy operation.
World-famous pneumatic components power, durable and solid
Worktable and screen arm micro adjustable, easy commissioning ,gear and rack convey cooperatively with a suitable fixture, precise printing positioning ,special shock absorber ,stable performance, mesh clean and replace is convenient with printing head up device (some types) avoid mesh sticking after printing with screen plate up device (some type)It can be widely applied in the industry of textile printing ,electronics, arts, decoration, publishing, and so on.
Technical Parameters

Mechanical model

WSC-500B

Max.screen plate size

450X750mm

Max.printing area

300X500mm

Printing thickness

80mm

Printing speed

900 cycle/hour

worktable size

350X550mm

Power SPEC

110V or 220V 50/60HZ

power consumption

20W

Dimensions

910X720X1680mm

Met weight

210KG

Typical Application areas
Cars: motormeter, tank, window glass.
Electronic products: keypad, silicon keys, phone window, membrane key, circuit board.
Electronic appliances: nameplate, dial scale, fireplace glass, appliance housing ,glass.
Ads: postal, dossal ,label, road marker, meal card, credit card.
Customs: T-shirt, flag, knit goods.
Gift: Toys, stationery, handicraft, transfer paper.



Application areas

Machines of this series can be widely applied to print on various kinds of key –press electric components like computer, mobile phone. electric panel. telephone, game player, etc, Machine is also suitable to print on accessories of hardware or plastics like logo ,toy, and commodity. Special design is available according to customer’s specific requirements.
