WSC-1200A
Features
The characteristics of curve screen printer.

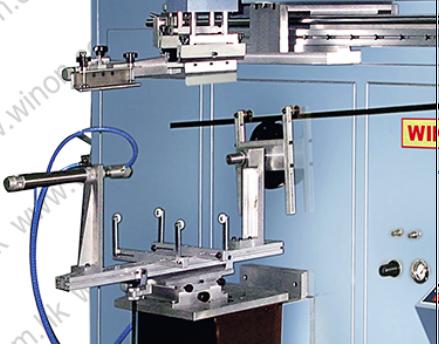

Microcomputer control, multi-fucntion, easy operation ,world famous pneumatic components power, durable and solid, worktable and screen arm micro adjustable ,easy commissioning ;gear and rack convery cooperatively with a suitable fixture, precise printing positioning ;special shock absorber, stable performance, widely apply to print various kinds of curve surfaces of columnar, oval cup, bottle ,tube, can.
Technical Parameters

Mechanical model

WSC-1200A

Max.screen plate size

500X1500mm

Maxi.printing area

380/300X1195mm

Printing speed

500 cycle/hour

Electric power

110V or 220V 50/60HZ 80W

Dimensions

3220X1250X1680mm

Net weight

380KG

Typical application

Widely apply in various kinds of cup, bottle ,tube ,buckle, and cans.





Application Areas

Machines of this series can be widely applied to print on various kinds of key –press electric components like computer, mobile phone. electric panel. telephone, game player, etc, Machine is also suitable to print on accessories of hardware or plastics like logo ,toy, and commodity. Special design is available according to customer’s specific requirements
