Features
The characteristics of multi-color inkwell pad printer.
Machine of this series adopts inkwell system.
Microelectronic keyboard operation controller (PIC control).
Independent pad up/down stroke and speed adjustable,chiche position adjustable ,shuttle table or rotary worktable,famous for their characteristics like muti-color registration.precision,high printing efficiency and easy operation, they are specially designed for multi-color(3-8)printing and can be widely applied to print electronic products ,home appliances,hardware ,plastics,toys and stationery,satisfying various high-quality printing requirements.
Technical Parameters

Mechanical model	WN-165
Single cycle	YES
Max.print(h)	200mm
Cycle/hour	1000Pcs/h
Cliche size	100mmx200mm
Printing area	60mmX160mm
Control panel	TOUCHscreen
Power supply	110V or 220V 50/60Hz
Electric power	20W 6Bar
External dimensions	1390mmX1385mmX1620mm

Application areas
Machines of this series can be widely applied to print on various kinds of key –press electric components like computer, mobile phone. electric panel. telephone, game player, etc, Machine is also suitable to print on accessories of hardware or plastics like logo ,toy, and commodity. Special design is available according to customer’s specific requirements.

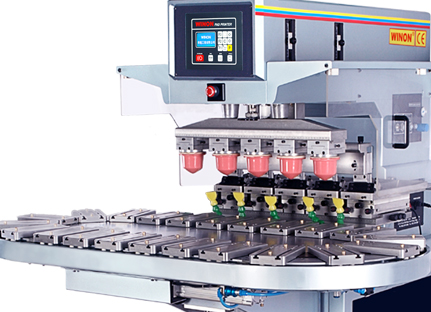

Multi-color rotary worktable with conveyor belt:
Housed by cast aluminum alloy,it’s solid and durable;precise slide rail and creative design guarantee multi-color registration precision,12-station worktable is powered by advanced components .The special conveying system and shock absorber guarantees machine’s high speed and stableness.
