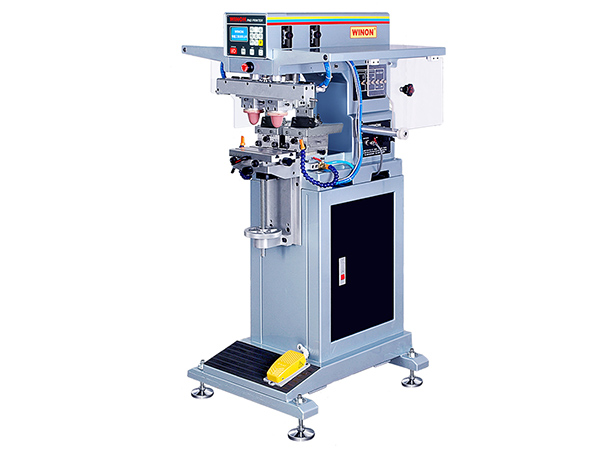

WN-121P
Features
The characteristics of two-color inkwell pad printer.
Machine of this series adopts two-color inkwell.
Microelectronic keyboard operation controller (PIC control).
Independent pad up/down stroke and speed adjustable,chiche position adjustable ,shuttle table or rotary worktable,famous for their characteristics like two-color registration.precision,high printing efficiency and easy operation, they can be widely applied to print electronic products,home appliances,hardware ,plastics,toys and stationery,satisfying various high-quality printing requirements.
Technical Parameters

Mechanical model

WN-121P

Single cycle

YES

Max.print(h)

200mm

Cycle/hour

1400PcsH

Cliche size

75mmx100mm

Printing area

40mmX50mm

Control panel

TOUCHscreen

Power supply

110V or 220V 50/60Hz

Electric power

20W 6Bar

External dimension

590mmX610mmX1240mm

Application areas
Machines of this series can be widely applied to print on various kinds of key –press electric components like computer, mobile phone. electric panel. telephone, game player, etc, Machine is also suitable to print on accessories of hardware or plastics like logo ,toy, and commodity. Special design is available according to customer’s specific requirements.

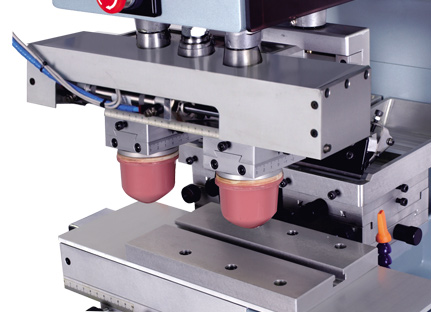

Two-color pad side-way structure:
Housed by excellent alloy, driven by precise components, the pad side-way structure for derivate machine type. Which is suitable for two-color registration with its stable and precise performance.
