Features
The characteristics of two-color inkcup pad printer.
Machine of this series adopts ink-saving ink cup.
Microelectronic keyboard operation controller (PIC control).
Independent pad up/down stroke and speed adjustable,chiche position adjustable ,shuttle table or rotary worktable,famous for their characteristics like two-color registration.precision,high printing efficiency and easy operation, they can be widely applied to print electronic products,home appliances,hardware ,plastics,toys and stationery,satisfying various high-quality printing requirements.
Technical Parameters

Mechanical model	WN-121ASE
Single cycle	YES
InkCup	ø60 MM
Max.print(h)	200mm
Cycle/hour	1400Pcs/h
Cliche size	75mmx150mm
Printing area	ø50mm
Control panel	TOUCHscreen
Power supply	110V or 220V 50/60Hz
Electric power	20W 6Bar
External dimensions	590mmX520mmX1240mm

Application areas
This series of printing Mechanical Model applies to all kinds of electronic products such , Such as computer keyboards, mobile phones, keyboards, electronic panels, telephonesconsoles and watches and clocks, toys, daily necessities, gifts and other metal plastic products LOGO ﹑ pattern text printing, also Design specific mechanical models for specific product requirements.

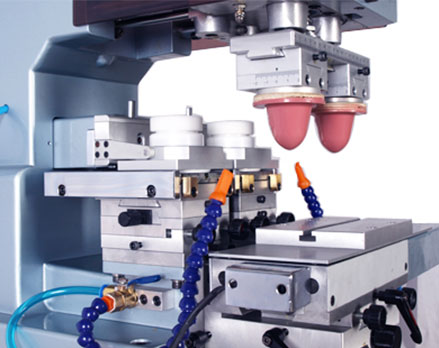

Two-color shuttle worktable:
Housed by excellent alloy,driven by precise components,the shuttle worktable is suitable for two –color registration with its stable and precise performance.
