Features
The characteristics of single-color ink cup printer.
Machine of this series adopts single –color ink-saving inkcup, using oil supply system.
Microelectronic keyboard operation controller(PIC control).
Independent pad up/down stroke and speed adjustable.
Worktable is adjustable in X.Y.Z and angle directions.
with a wide range of applications. high printing efficiency ,easy operation .they can be widely applied to print on electronic products ,home appliances ,hardware, plastics, toys and stationery, etc, satisfying various printing requirement (flat, curve, irregular surface printing).
Technical Parameters

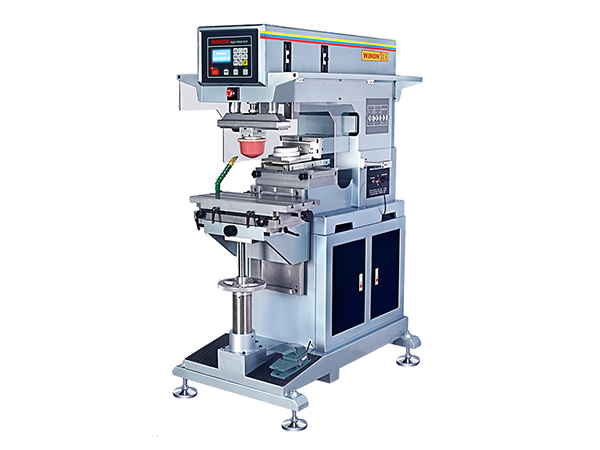

Model	WN-135E
Single cycle	YES
InkCup	Φ135 MM
Max.print(h)	300mm
Cycle/hour	1000Pcs/h
Cliche size	150mmx350mm
Printing area	110mmx150mm
Control panel	TOUCHscreen
power supply	110V or 220V 50/60Hz
Electric power	20W 6Bar
External dimensions	1170mmX800mmX1690mm

Application areas
Machines of this series can be widely applied to print on various kinds of key –press electric components like computer, mobile phone. electric panel. telephone, game player, etc, Machine is also suitable to print on accessories of hardware or plastics like logo ,toy, and commodity. Special design is available according to customer’s specific requirements.

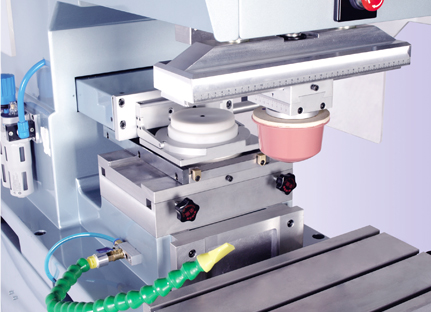

Ink mode:
Adopts imported ceramic ring,sealed ink cup can maximally reduce ink waste and the evaporation of the smell.ink can be stored in the cup for a long duration with stable viscosity.it’s famous for being economic and environment-friendly.
