WN-121
Features
The characteristics of single-color inkwell pad printer.
Machine of this series adopts single-color inkwell ,using oil supply system.
Microelectronic keyboard operation controller(PIC control).
Independent pad up/down stroke and speed adjustable.
Worktable is adjustable in X.Y.Z and angle directions.
with a wide range of applications. high printing efficiency ,easy operation .they can be widely applied to print on electronic products ,home appliances ,hardware, plastics, toys and stationery, etc, satisfying various printing requirement (flat, curve, irregular surface printing).
Technical Parameters

Model

WN-121

Single cycle

YES

Max.print(h)

70mm

Cyclle/hour

1800Pcs/h

Cliche size

100mmx100mm

Printing area

50mmX50mm

Control panel

TOUCHscreen

Power supply 110V or 220V 50/60HzV
Electric power 20W 6BarW
External dimensions 560mmX340mmX540mm
Application areas
Machines of this series can be widely applied to print on various kinds of key –press electric components like computer, mobile phone. electric panel. telephone, game player, etc, Machine is also suitable to print on accessories of hardware or plastics like logo ,toy, and commodity. Special design is available according to customer’s specific requirements.

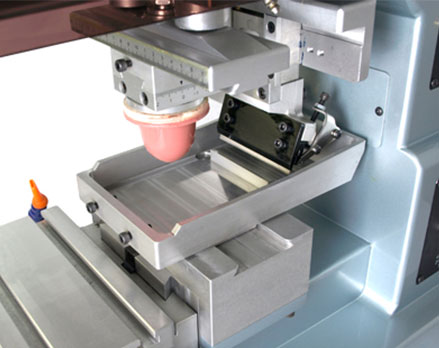

Ink mode:
Ink well type can be applied in big size printing and easy to install and operate. The operation is more flexible ,you can directly printing after ink adjusted.
